PRODUCT OVERVIEW
TOMAR’s RRFB Notification/Pilot LED light heads provide critical lateral visibility for enhanced pedestrian awareness and MUTCD IA-21 compliance. These compact RECT-13 based light heads are engineered for side mount applications, ensuring drivers approaching from angles not covered by the main RRFB units and pedestrians approaching the crosswalk from the sides are clearly notified of beacon activation. This additional visibility improves safety for everyone at the intersection by reinforcing the presence of an active crossing signal from multiple vantage points.
Each unit features two built-in intensity modes - standard brightness for daytime and a dimmed mode for night use - improving performance in all lighting conditions. Operating on 12 to 24 VDC with low current draw, the side lights are self flashing and include a sync wire to pair with a main LEFT and RIGHT RRFB setup for coordinated flash patterns.
Simple to integrate and built for durability, these side mounted LED pilot lights are a vital addition to any crosswalk or pedestrian safety system seeking full angle visibility.
*Pedestrian Notification Lights are optional on RRFB Systems with TOMAR's T-Beam™ integrated pedestrian notification system.
Product Specs (R13)

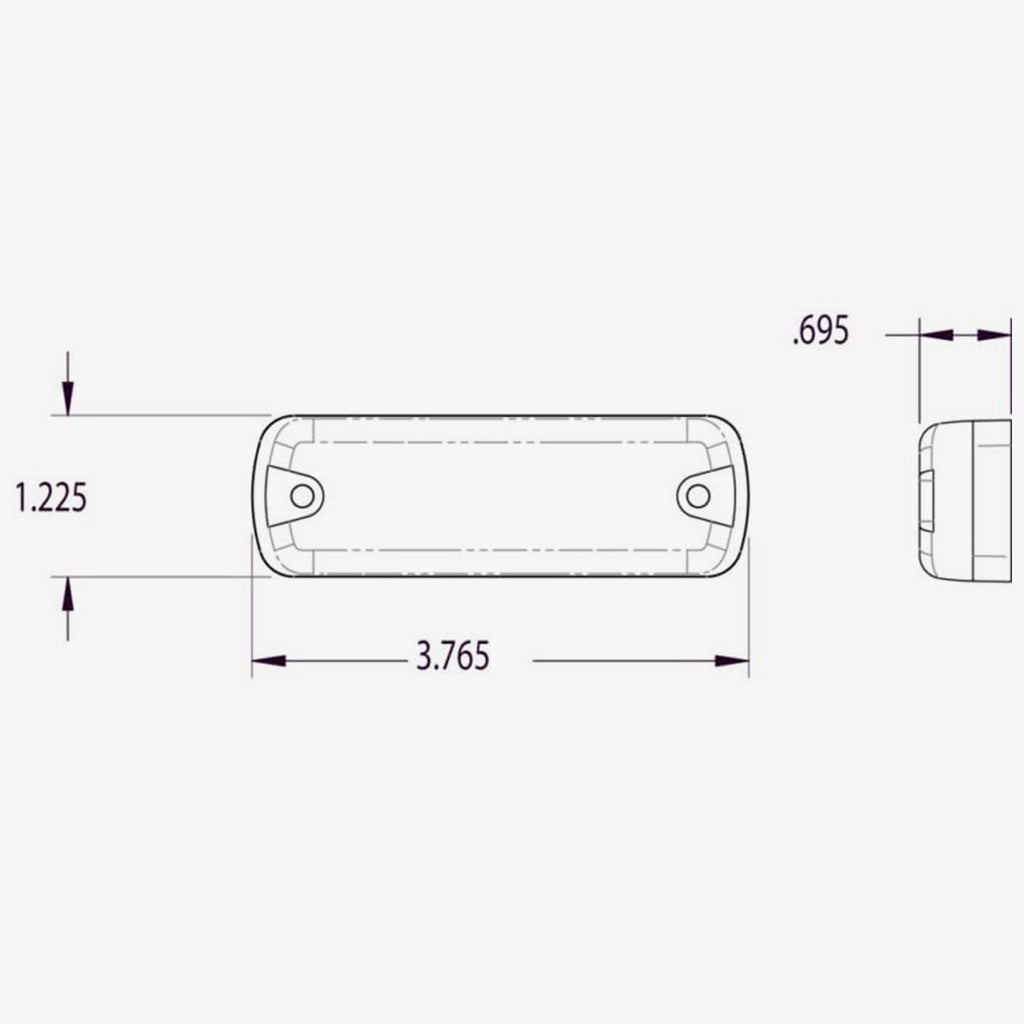

- R13: 3.765” W x 1.225” H x .695” D (9.56 cm x 3.11 cm x 1.77 cm)
- Input voltage: +12 through +24 VDC
- Current at full intensity: .20 A at 12 VDC, .11 A at 24 VDC
- Current at dim intensity: .06 A at 12 VDC, .045 A at 24 VDC
- Includes 2 light levels - standard and lower intensity (dim) for night use
- These are self flashing lamps. A LEFT and RIGHT pair must be synced together via sync wire to provide an RRFB compliant flash pattern per IA-21.
Wiring Layout
- RED: Connect to battery +12 VDC through +24 VDC to activate
- BLACK: Connect to battery ground
- YELLOW: Sync line
- BLUE: Dimming

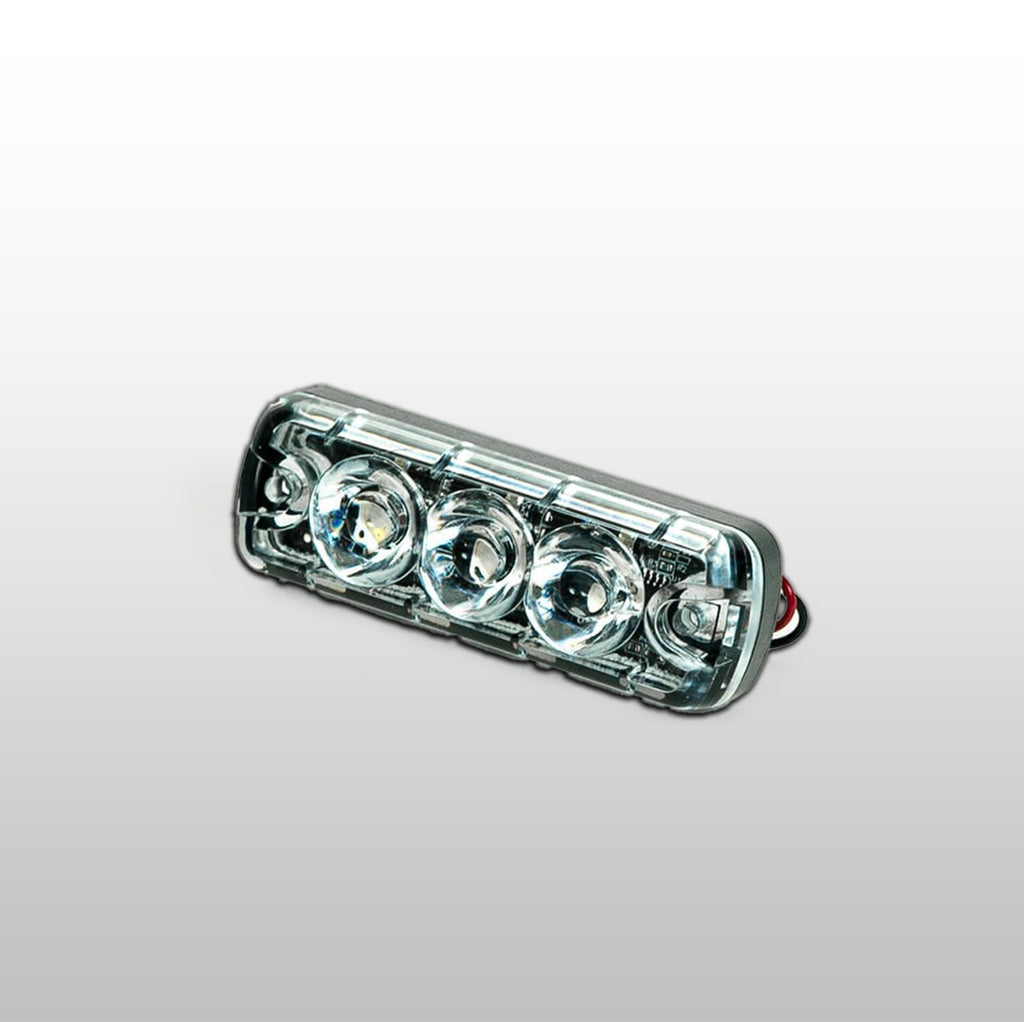

Notification/Pilot LED Light Heads
| Model | Right or Left Side | LED Color |
|---|---|---|
|
R13-A-INDR |
Right | Amber |
|
R13-R-INDR |
Right | Red |
|
R13-A-INDL |
Left | Amber |
|
R13-R-INDL |
Left | Red |
