PRODUCT OVERVIEW

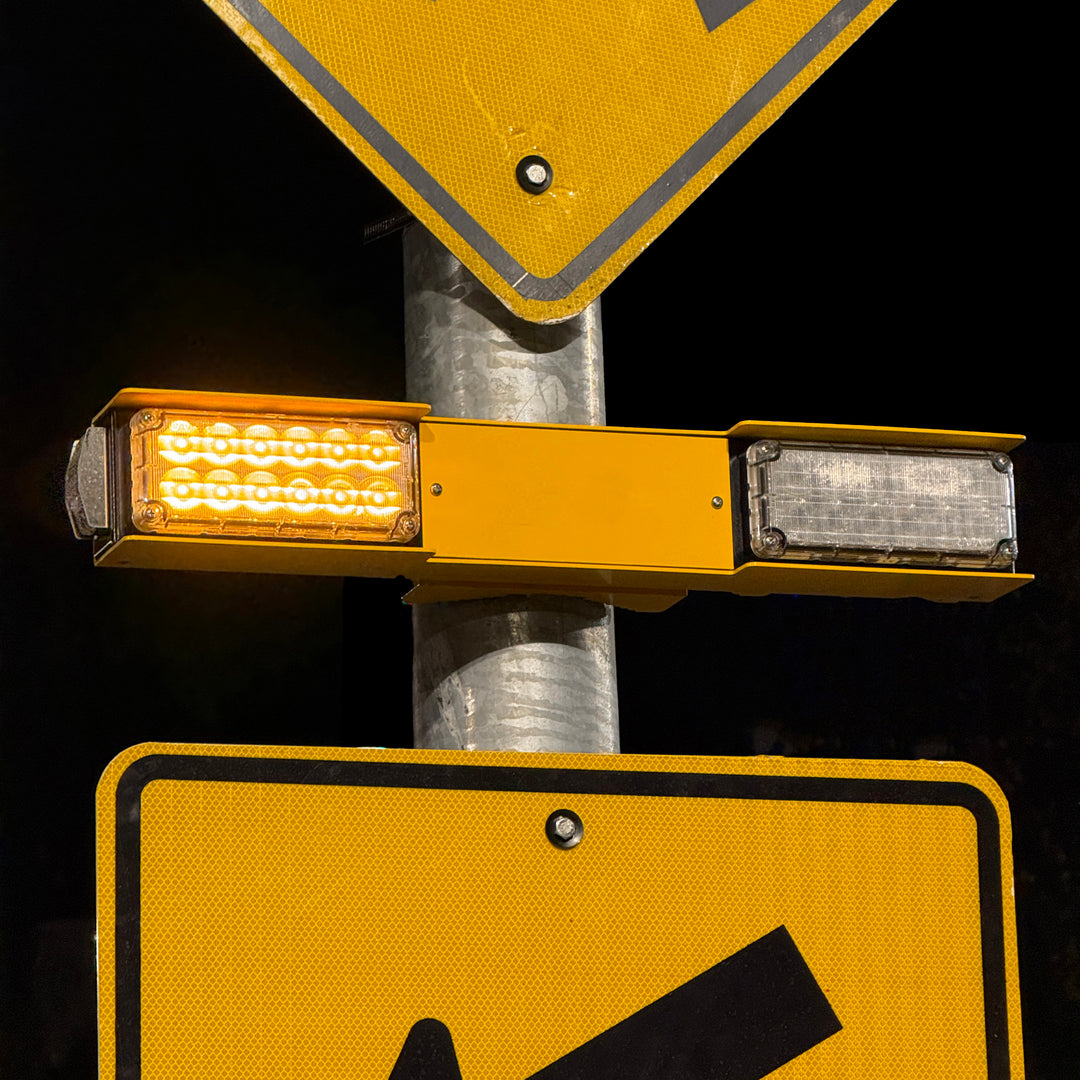

At TOMAR, we design high-performance traffic safety solutions tailored for engineers managing both existing infrastructure and new projects. Our Rapid Rectangular Flashing Beacon (RRFB) enhances pedestrian visibility and ensures compliance with traffic safety standards, providing a reliable, long-term solution for roadway and pedestrian safety.
Built to withstand the toughest conditions, TOMAR RRFBs are part of our Revolution Line, featuring an industry-leading linear vibration weld seal. This advanced IP69k+ hermetic sealing offers superior dust and water protection, making it an ideal choice for retrofits and new installations in any environment.
For optimal optical performance, each RRFB is equipped with a UV-treated, optically clear Lexan lens, reducing yellowing and degradation over time. Our Clear Vision Optics™ technology provides superior visibility at greater distances compared to conventional rear-reflector optics, helping engineers maximize pedestrian safety.
Designed for efficiency, the compact 3x7-inch module operates on 12 to 24 volts DC, with a low average current draw of just 0.076 to 0.37 amps—ideal for both grid-powered and solar applications. Engineers can also optimize visibility in different lighting conditions with selectable daytime and nighttime intensity levels.
For seamless integration into any traffic system, TOMAR RRFBs are available in both self-contained and externally controlled configurations, allowing engineers to incorporate them into existing infrastructure or new project designs with ease.
Fully compliant with the U.S. Department of Transportation’s Interim Approval IA-21 for the Manual on Uniform Traffic Control Devices (MUTCD), our RRFBs meet federal safety regulations while delivering industry-leading reliability and performance.
When safety, compliance, and efficiency matter, TOMAR’s Revolution Line RRFBs provide engineers with a high-performance, low-maintenance solution for enhancing pedestrian safety in both new and existing traffic systems.
TOMAR—Precision-engineered for the future of traffic safety.
Key Features
MUTCD IA-21 Compliant
- Designed in accordance with U.S. Department of Transportation standards for pedestrian-actuated conspicuity enhancements at uncontrolled crosswalks.
IP69K+ Hermetic Seal for Ultimate Durability
- Linear vibration weld sealing provides the highest level of dust and water protection to ensure long-lasting reliability in extreme conditions.
Optimized Optical Performance
- Clear Vision Optics™ maximize visibility at longer distances compared to conventional rear-reflector optics.
- UV-treated, optically clear Lexan lens prevents yellowing and degradation over time.
SAE J595 Class 1 Yellow Compliance
- Meets minimum peak luminous intensity standards.
Compact & Efficient Power Consumption
- 3-by-7-inch form factor for easy integration into any installation.
- Operates on 12V – 24V DC with an average current draw of just 0.076 – 0.37 amps.
Selectable Intensity for Day & Night Operation
- Two brightness levels allow operators to optimize visibility for different lighting conditions.
Flexible Integration & Mounting Options
- Available in self-controlled and externally controlled configurations for seamless deployment.
- Lamps with mounting hardware included – Additional mounting options available through OEM suppliers. 4 x Stainless Steel Screws, Locking Washers, and Nuts included.
Self-Flashing Solution Specifications
- Dimensions: 7.23”w x 3.04”h x 1.171”d (18.59cm x 7.72cm x 2.97cm)
- Input voltage: +12 thru +24VDC
- Current in Steady Burn (full intensity): .37A at 12VDC, .225A at 24VDC
- Current in Steady Burn (dim intensity): .1A at 12VDC, .076A at 24VDC
- Includes 2 light levels – standard and lower intensity (dim) for night use
- These are self-flashing lamps. A LEFT and RIGHT pair must be synced together via sync wire to provide an RRFB-compliant flash pattern per IA-21.
- Wiring Layout
- RED: Connect to Battery +12Vdc thru +24Vdc to activate
- BLACK: Connect to Battery GROUND
- YELLOW: Sync Line
- BLUE: Dimming
Externally Flashed Solution With Dimmer-Wire Specifications
- Dimensions: 7.23”w x 3.04”h x 1.171”d (18.59cm x 7.72cm x 2.97cm)
- Input voltage: +12 thru +24VDC
- Current in Steady Burn (full intensity): .37A at 12VDC, .225A at 24VDC
- Current in Steady Burn (dim intensity): .1A at 12VDC, .076A at 24VDC
- Includes 2 light levels – standard and lower intensity (dim) for night use
- These are steady-burn lamps and do not include a sync wire. Each lamp is externally flashed/controlled by the customer - IS0798 is attached for current draw and wire colors.
- Wiring Layout
- RED: Connect to Battery +12Vdc thru +24Vdc to activate
- BLACK: Connect to Battery GROUND
- BLUE: Dimming
Externally Flashed Solution Without Dimmer-Wire (PWM) Key Specifications
- R37: 7.23”w x 3.04”h x 1.171”d (18.59cm x 7.72cm x 2.97cm)
- Dimensions: 7.23”w x 3.04”h x 1.171”d (18.59cm x 7.72cm x 2.97cm)
- Input voltage: +12 thru +24VDC
- Current in Steady Burn (full intensity): .37A at 12VDC, .225A at 24VDC
- Includes 1 light input wire – LED intensity may be reduced by pulse width modulation (PWM) of input power
- These are steady-burn lamps and do not include a sync wire. Each lamp is externally flashed/controlled by the customer - IS0862 is attached for current draw and wire colors.
- Wiring Layout
- RED: Connect to Battery +12Vdc thru +24Vdc to activate
- BLACK: Connect to Battery GROUND
