PRODUCT OVERVIEW

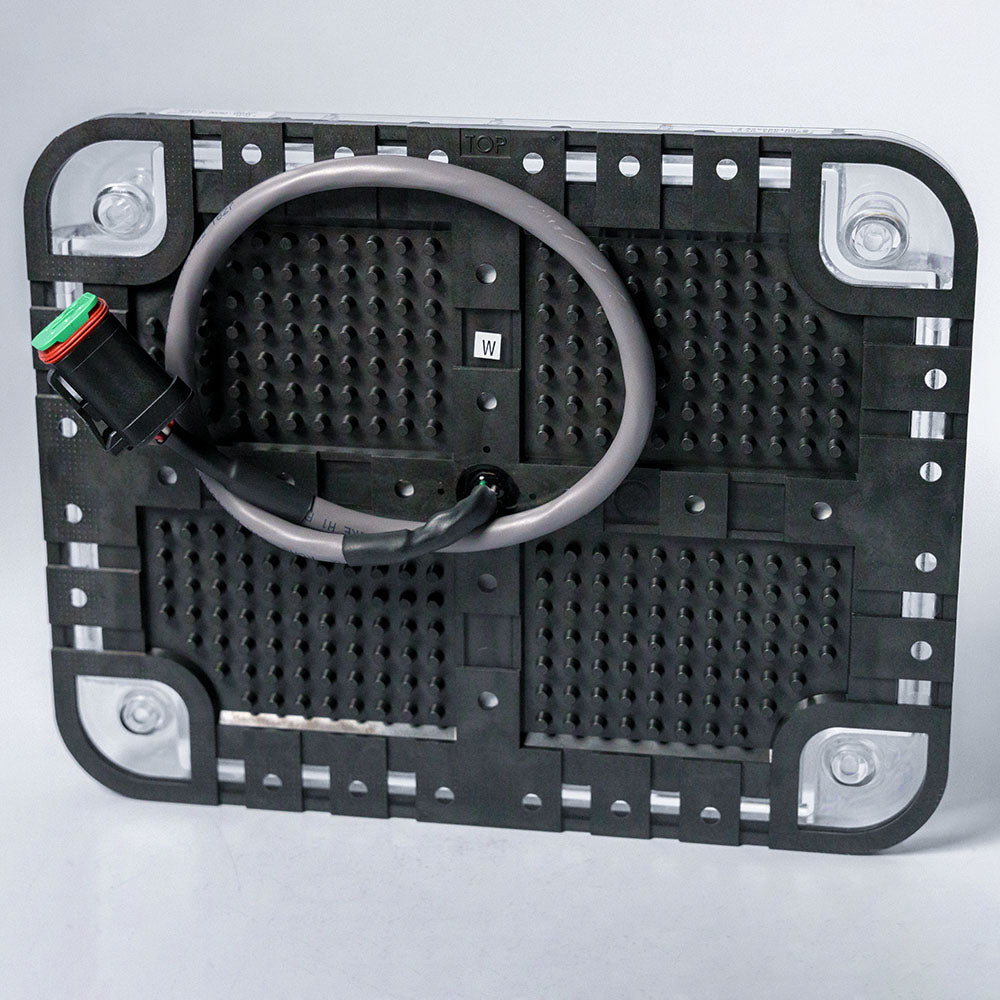

TOMAR’s R79I IR Illuminators are high-output, rugged pulsed LED illuminators, designed for seamless integration into license plate recognition (LPR), video tolling, security CCTV surveillance, and parking access control systems. These illuminators deliver precise, high-energy illumination, optimized for both high-speed motion capture and continuous surveillance applications.
Our weatherproof, externally triggered illuminators generate short-duration, high-intensity pulses at rates of up to 120Hz, ensuring sharp, high-contrast imaging for moving targets in LPR and tolling applications, while also providing consistent, reliable illumination for security and parking surveillance.
WHY CHOOSE TOMAR's REVOLUTION IR ILLUMINATORS?
- Ultra-fast pulse rates (up to 120Hz) for high-speed LPR and motion imaging
- Precision optical control with multi-wavelength and multi-diffuser configurations
- Seamless hardware and software integration for system designers
- Multi-diffuser capability within a single lamp for adaptive illumination profiles
- UV-Stabilized Polycarbonate Lens for long-term durability in outdoor deployments
- Built to last – IP69K+ sealed, UV-stabilized, and thermally optimized for 24/7 operation
CUSTOMIZABLE WAVELENGTH & OPTICAL PERFORMANCE
- Optimized for Motion Capture & Surveillance
- Infrared Wavelengths: 850nm & 940nm for covert and semi-covert imaging
- Visible Light Options: White, red, far red, blue, and additional colors available for enhanced scene visibility
- Hybrid Configurations: Independent intensity control of multiple wavelengths (e.g., IR + White or IR + Far Red) to optimize imaging across varying target types and ambient conditions
- Adaptive Beam Control with Multi-Diffuser Integration
- Eight Optical Diffuser Options – Configurable for wide-angle illumination in surveillance or long-range pinpoint targeting in LPR and tolling applications
- Multi-Diffuser Integration – Combine multiple optical diffusers within a single illuminator to create a customized beam profile, balancing short-range floodlighting with long-range focus areas
- Optimized for Any Distance – Achieve uniform illumination across different zones, reducing hotspots and glare while ensuring consistent target visibility
Built for Harsh Environments
As part of the TOMAR Revolution Series, these illuminators are engineered for long-term deployment in extreme conditions, featuring:
- IP69K+ water and dust resistance – Patented T-Seal™ technology for superior durability
- UV-Stabilized Polycarbonate Lens – Protects against degradation from prolonged sunlight exposure, ensuring long-term optical clarity and performance
- Clear Vision Optics™ – TOMAR’s proprietary hybrid TIR optical system for maximum optical efficiency
- 5-Year Standard Warranty – Ensuring reliability in mission-critical applications
Key Features – TOMAR R79 Illuminator
- Dimensions: 7.125″ high by 9.125" wide (7x9)
- Dual Triggering Options for Seamless Integration:
- External Digital Trigger: Optically isolated 5-24VDC input
- RS-485 Serial Interface: Enables configuration and software-based triggering
- High-Speed Operation: Supports 0-120Hz trigger rate, with all LED groups triggering simultaneously
- Precision Light Control:
- Digitally Selectable Intensity: 0-100% brightness, adjustable in 255 steps
- Digitally Selectable Pulse Width: Adjustable from 100µs to 500µs in 200 steps
- Customizable Wavelength & Diffuser Configurations (see below)
- Input Voltage: 24VDC ±10%
- Trigger Input Voltage Range: 5-24VDC
- IP69K+ Rated: Maximum water and dust protection using TOMAR’s patented T-Seal™ technology
- UV-Stabilized Polycarbonate Lens: Prevents degradation from prolonged sun exposure, maintaining optical clarity
- Thermally Optimized Design: Ensures consistent high-performance operation
- Designed, Engineered, and Assembled in TOMAR’s Energy Star-certified manufacturing facility in Gilbert, Arizona
SYNCHRONIZED OPERATION & PRECISION TRIGGERING
TOMAR’s Revolution Illuminators feature precise, software-controlled triggering for seamless synchronization with imaging systems. Designed to flash precisely when needed, these illuminators support triggering at rates up to 120Hzfor high-speed applications, while also supporting constant-on operation for surveillance.
- Optically Isolated 5-24VDC Trigger Pulse – Ensures clean, reliable synchronization with camera systems
- RS-485 Command Interface – Enables advanced software-driven control and integration with system logic. Through the RS-485 interface, users can configure:
- Illuminator Addressing – Enables multiple Revolution Illuminators on a single RS-485 network
- LED Drive Current Control – Adjustable from 0-100% intensity in 255 steps
- Pulse Duration Customization – Set from 100µs to 500µs in 200 steps
- Tightly Controlled Trigger Delays – Ensures LED flashes are perfectly synchronized with image capture
- For surveillance applications, RS-485 control also allows for adjustable intensity levels and duty cycles to fine-tune illumination based on ambient conditions.
Potential Uses of TOMAR Revolution Series Illuminators
Security & Surveillance
- License Plate Recognition (LPR) & Automated Tolling – IR and far-red illumination ensures clear, high-contrast plate captures under varying speeds, angles, and ambient lighting conditions
- Traffic Law Enforcement – Supports automated red-light and speed enforcement cameras, delivering optimized illumination for high-speed imaging
- Weigh-in-Motion (WIM) Systems – Precisely illuminates vehicles for automated weight verification and vehicle classification
Industrial & Machine Vision Applications
- Perimeter & Facility Surveillance – IR and visible illumination enhances CCTV and security camera effectiveness, even in zero-light conditions
- Parking Lot & Garage Monitoring – Ensures clear image capture for vehicle tracking, security monitoring, and automated access control
- Homeland Security & Border Control – Supports covert and overt surveillance applications by enabling long-range and short-range imaging with custom diffuser options
Industrial & Machine Vision Applications
- Automated Vehicle Identification (AVI) – Enhances accuracy in fleet management, logistics, and vehicle tracking systems
- Automated Quality Control – Provides high-precision lighting for object recognition, barcode scanning, and defect detection in industrial automation
- Robotics & AI Vision Systems – Supplies consistent, controlled lighting for AI-based object tracking and automated guidance systems
Specialized Applications
- Aviation & Maritime Security – Improves low-visibility monitoring at airports, ports, and maritime checkpoints
- Military & Tactical Operations – Covert IR illumination ensures enhanced situational awareness without visible detection
- Custom OEM Integrations – Revolution Series Illuminators can be configured for proprietary systems, ensuring tailored performance for mission-critical applications
R79I Illuminator Customization Options
TOMAR Revolution Series Illuminators can be customized to meet the specific requirements of your project. While the web-orderable options displayed above are pre-configured selections, the Revolution Series supports extensive customization capabilities to optimize performance for your application.
- Multi-Wavelength Configuration
- Can be split into four (4) different LED wavelengths, arranged in two rows per wavelength (total of eight (8) rows)
- Each wavelength can have independent intensity control
- Custom Diffuser Selection
- Multiple diffuser types can be applied within a single lamp, allowing for customized beam shaping to match specific system requirements
Available LED Wavelength Options
| Wavelength | Designation | Application |
|---|---|---|
|
850nm IR |
(850) | High-sensitivity IR illumination for LPR, security, and tolling |
|
940nm IR |
(940) | Covert IR illumination for low-light and surveillance |
|
730nm Far Red |
(F) | Enhances license plate readability in certain applications |
|
White |
(W) | General-purpose visible illumination |
|
Red |
(R) | Contrast enhancement in specific imaging conditions |
|
Blue |
(B) | Specialized wavelength for unique imaging applications |
|
Amber |
(A) | Ideal for specific traffic and signaling applications |
|
Green |
(G) | Alternative visible spectrum option for specialized uses |
|
Custom |
(UNK) | Additional wavelength options may be available upon request |
Available Optical Diffuser Options
| Diffuser Type | Beam Angle & Pattern | Application |
|---|---|---|
|
No Diffuser (Spot) |
8° Full Width at Half Maximum (FWHM) | Focused long-range illumination |
|
30° Circular Diffuser |
Uniform 30° spread | General-purpose wide coverage |
|
40° Circular Diffuser |
Uniform 40° spread | Increased area coverage |
|
80° Circular Diffuser |
Uniform 80° spread | Wide-area flood illumination |
|
15×1 Elliptical Diffuser |
15° (horizontal) × 1° (vertical) | Narrow horizontal strip illumination |
|
30×5 Elliptical Diffuser |
30° (horizontal) × 5° (vertical) | Moderate horizontal beam |
|
60×10 Elliptical Diffuser |
60° (horizontal) × 10° (vertical) | Broad horizontal coverage |
|
60×30 Elliptical Diffuser |
60° (horizontal) × 30° (vertical) | Wide-area flood with moderate vertical spread |
