PRODUCT OVERVIEW
The TCONF-CBL True Confirmation Cable is a purpose built cable assembly for enabling True Confirmation in TOMAR’s STROBECOM II® systems. It connects the front of the 4140V2 or OSPOCV2 card to the traffic signal cabinet through a serial adapter.

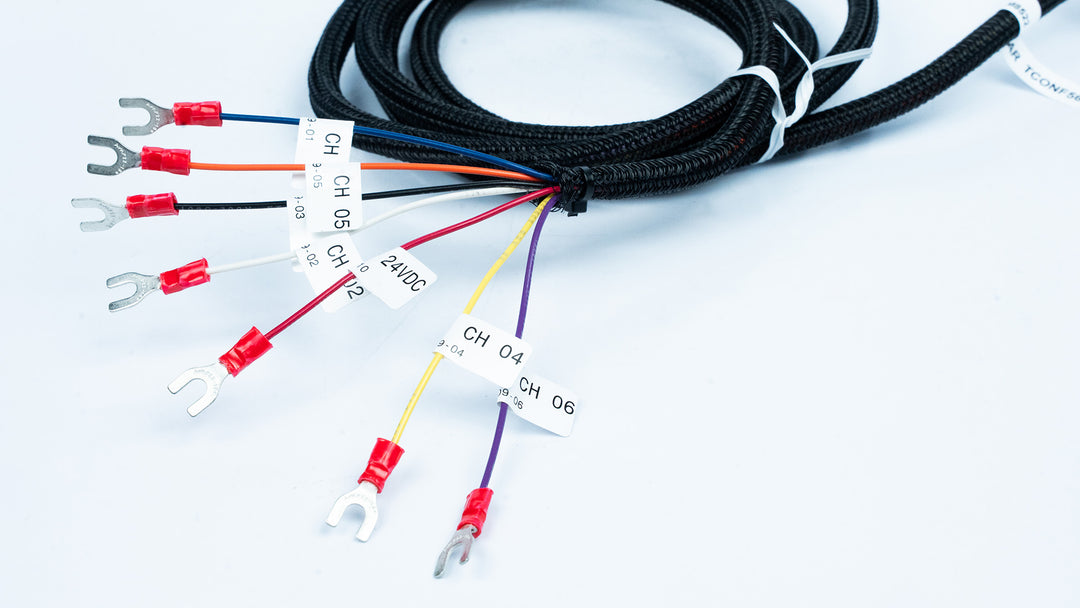

The cable includes seven wires: six for confirmation input channels 1 through 6, and one for a +24V input from the cabinet. All leads are color coded and clearly labeled for accurate and efficient installation.
Lead Layout
| Wire Color | Channel |
|---|---|
|
Blue |
1 |
|
White |
2 |
|
Black |
3 |
|
Yellow |
4 |
|
Orange |
5 |
|
Violet |
6 |
|
Red |
Power +24VDC |
Compatible Products
- 4140V2 Series STROBECOM II® Optical Signal Processors
- OSPOCV2 Series Opticom* Compatible Optical Signal Processors
