PRODUCT OVERVIEW
TOMAR’s DETOC Series Optical Preemption Detectors sense the optical pulses emitted by properly equipped emergency or transit vehicles. Mounted to observe the approaches of an intersection, DETOC Detectors are used with TOMAR OSPOC Series Optical Signal Processors or GTT Opticom* brand phase selectors to inform the traffic control system of the presence of designated vehicles.
DETOC series detectors are compatible with Opticom 400, 500, 700 Series Discriminator Cards and TOMAR OSPOCV2 Series OSP Cards; and all TOMAR and Opticom IR LED and Strobe Emitters.
DETOC series detectors can be used in mixed intersections or to expand existing optical preemption systems that use Opticom-brand coded optical signals.
Product Options

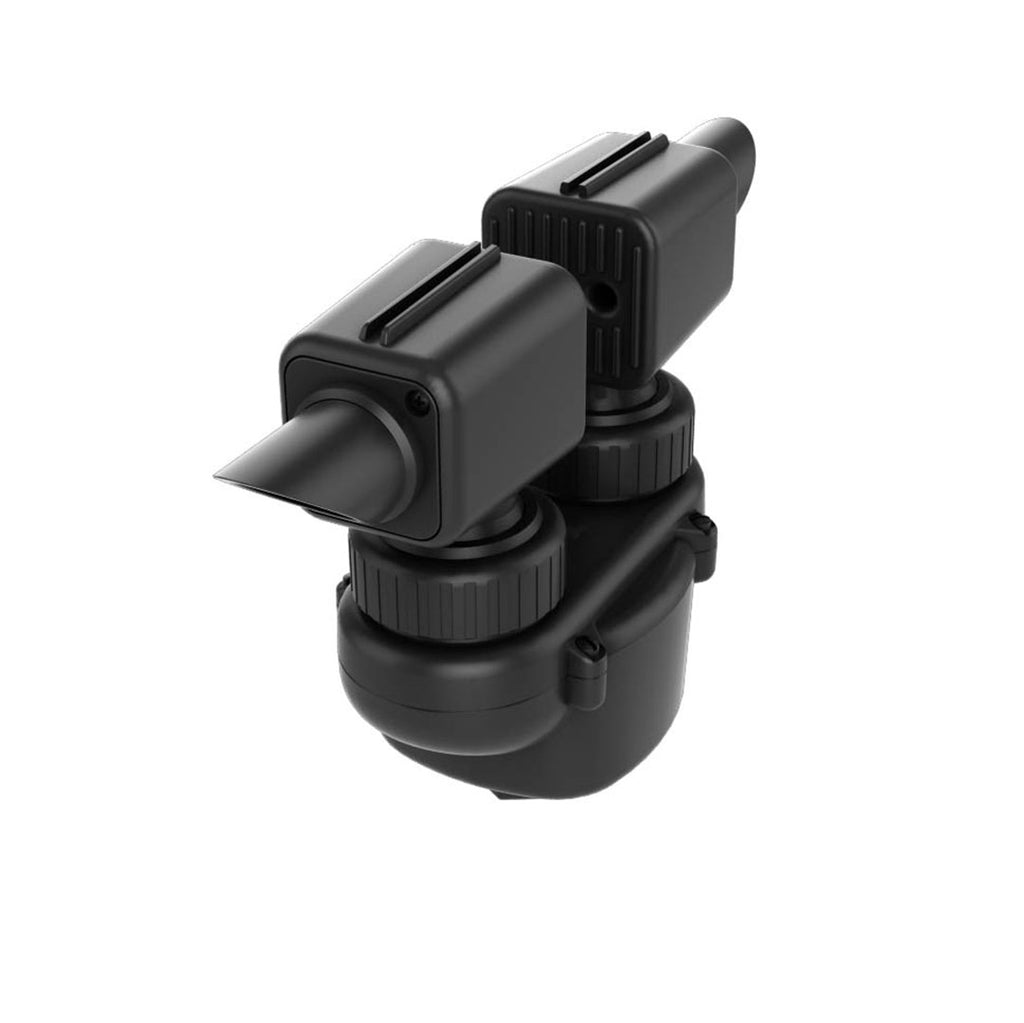

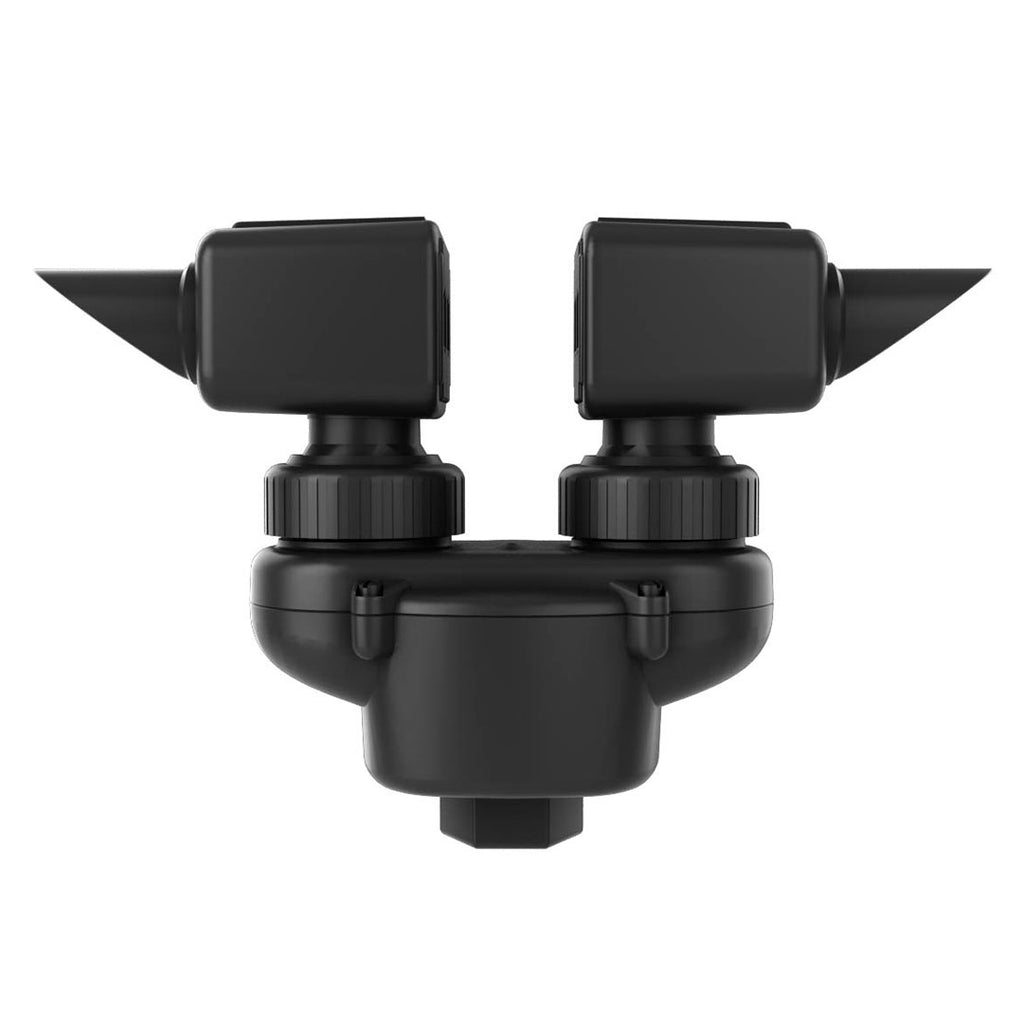

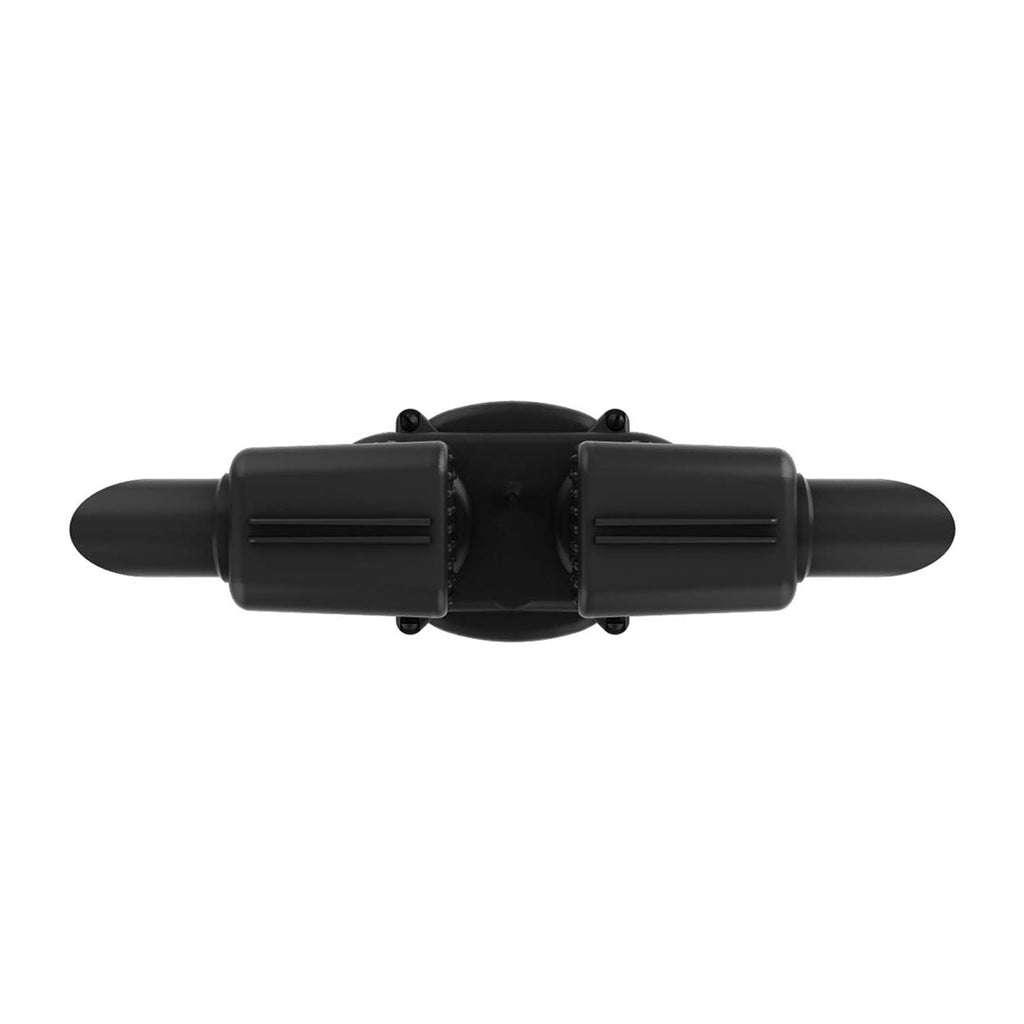

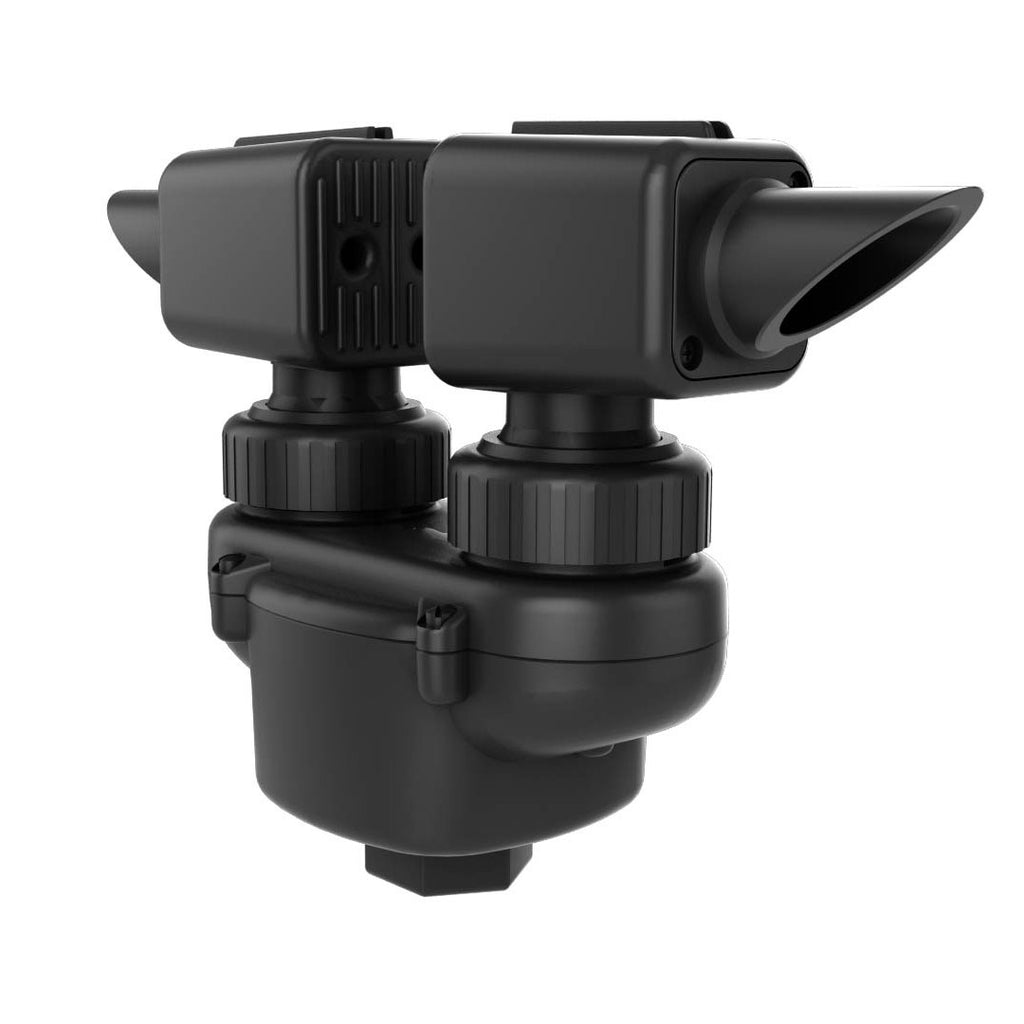

- DETOC22: 2-Head, 2-Direction, 2-Channel
Key Features
- Military-derived sensor technology for direct sunlight rejection and detection performance unmatched by any other system.
- Fully encapsulated electronics for complete resistance to water, heat, and vibration.
- Complete electronics protection from damage due to mis-wiring or electrical transients.
- Simple advanced detector installation without any special cabling for enhanced detection around corners and over hills.
- Tool-less tilt/swivel for each detector head makes aiming easy.
Product Specs
- Channels: 2
- Detection Range: 2,500+/- feet
- Compatibility: Opticom 400, 500, 700 Series Discriminator Cards and TOMAR OSPOCV2 Series OSP Cards; All TOMAR STROBECOM II and Opticom IR LED and Strobe Emitters.
- Maximum Cable Length: Up to 900 feet of TOMAR M913 preemption cable between optical signal processor and detector
-
Cable Type: TOMAR model M913 preemption detector cable
20 AWG 3-conductor shielded cable & bare - Field of View: 13 degrees conical centered around viewport normal axis (typical)
- Operating Temperature: -40 to +75 degrees C
- Physical Construction: The DETOC enclosure is black, glass filled, UV stabilized poly-amide suitable for all weather use. All electronics circuitry is completely encapsulated in polyurethane for protection from shock, vibration, and moisture

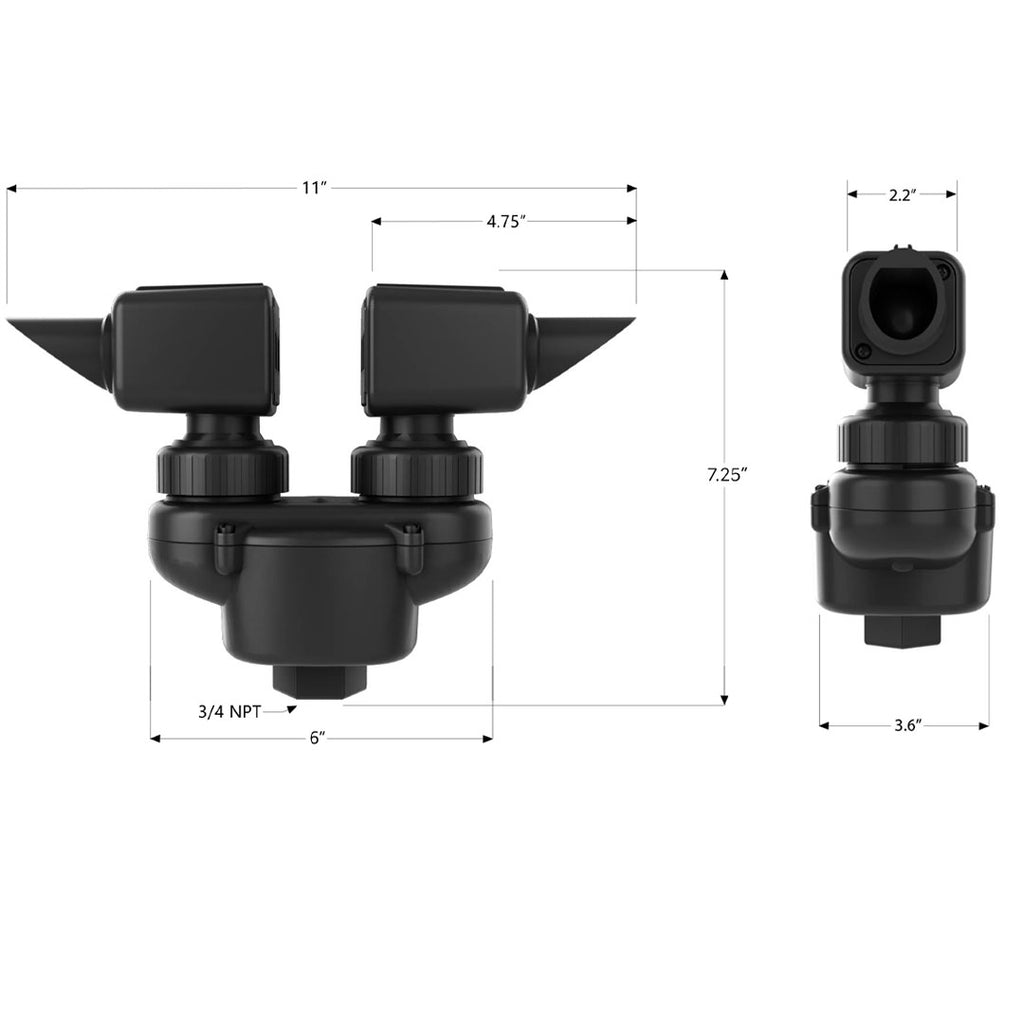

- Mounting: The DETOC is easily mounted using standard hardware on either span wire or mast arm. The unit has a ¾” female pipe mount hub and internal terminal block for connection to a 3/C shielded detector cable (TOMAR M913)
TRUE 10 YEAR WARRANTY!
10 year warranty covers the DETOC Series and all STROBECOM II components. Unlike other manufacturers, TOMAR’s ten year warranty has no fees or charges for warranty repairs after five years.
*Global Traffic Technologies, GTT, Discriminator, and Opticom are trademarks of Miovision Technologies Incorporated and not affiliated with TOMAR Electronics Inc.
STROBECOM II Overview
Product Cut Sheets and Wiring Guides
-
DETOC21 - 2-Head/1-Channel, Optical Detector
-
DETOC22 - 2-Head, 2- Direction, 2-Channel, Standard Detector
with TOMAR OSPOC Automatic Test
-
DETOC1-IC- X - 1-Head, 1- Direction, 1-Channel, 1-LED, Standard
Detector with Integrated Confirmation and TOMAR
OSPOC Automatic Test -
DETOC21-1IC-X - 2-Head, 1- Direction, 1-Channel, 1-LED, Standard
Detector with Integrated Confirmation and TOMAR
OSPOC Automatic Test
-
DETOC21-IC-X - 2-Head, 2- Direction, 1-Channel, 2-LED, Standard
Detector with Integrated Confirmation and TOMAR
OSPOC Automatic Test -
DETOC22-IC-X - 2-Head, 2- Direction, 2-Channel, 2-LED, Standard
Detector with Integrated Confirmation and TOMAR
OSPOC Automatic Test - Wiring and Install Instructions
3D STEP FILES
- DETOC1-21-XX1CL-X Series 2 Head Detector 3D Step File (Same Direction, No Confirmation, Standard and Self Test)
- DETOC1-2X-XX Series 2 Head Detector 3D Step File (1 Confirmation Light Standard and Self Test)
- DETOC1-2X-XX Series 2 Head Detector 3D Step File (Different Direction No Confirmation, Standard and Self Test)
- DETOC1-2X-XX Series 2 Head Detector 3D Step File (Different Direction 2 Confirmation Lights, Standard and Self Test)
STROBECOM II Helpful Links
3D STEP FILES
FAQ's
How far do your emitters send the signal?
TOMAR emitters are detectable from approximately 2500+/- feet
Do TOMAR emitters come with a warranty?
Yes, our 3065 & T792HL style power supplies are backed by an industry leading 10-year warranty. Our 401 power supplies & strobes are backed by a 2-year warranty
Are these IR emitters?
Yes, our optical emitters send a IR or infrared signal
Do they require programming?
No, our emitters do not require programming in order to operate or be detected at intersections but they can be programmed to send a specific code if that is needed.
What is the VLF?
Our emitters are offered with an optional VLF which is a visible light filter to block any visible light from being seen.
Do you offer a handheld version?
Yes, our T792HLB-20V & 3065B-20V provide a full strength emitter option
Can emitters be mounted behind a windshield or on a vehicles dashboard?
Yes, they can be but most vehicles have an IR style windshield. While IR windshields will assist in reducing the heat inside of a vehicle it will also unfortunately reduce the range that an emitter can send a signal.
