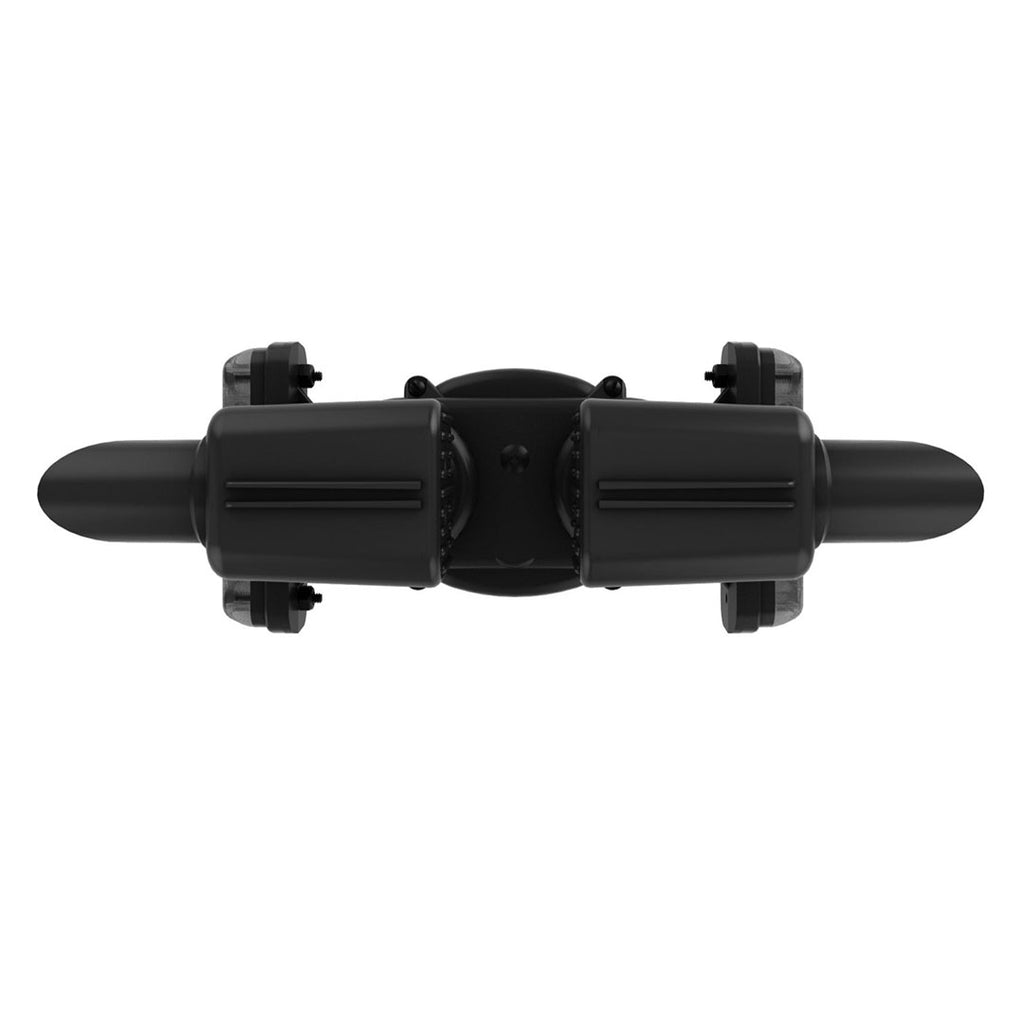

DETOC Detector Series 2 Head, 2 Channel w/ Integrated Confirmation™ Lights

PRODUCT OVERVIEW

TOMAR’s DETOC Series Optical Preemption Detectors sense the optical pulses emitted by properly equipped emergency or transit vehicles. Mounted to observe the approaches of an intersection, DETOC Detectors are used with TOMAR OSPOC Series Optical Signal Processors or GTT Opticom* brand phase selectors to inform the traffic control system of the presence of designated vehicles.

DETOC series detectors are compatible with GTT Opticom brand 200, 500, and 700 series IR or IR/GPS phase selectors, and 200, 500, and 700 series LED and strobe based emitters.

DETOC series detectors can be used in mixed intersections or to expand existing optical preemption systems that use Opticom-brand coded optical signals.

EVP and TSP with Integrated Confirmation™

TOMAR's Integrated Confirmation™ (IC) is an industry first, setting a new standard for reliable visual confirmation to further increase safety, lower response times and streamline installations. A high-power white or blue LED attached to the optical detector receives power via the standard TOMAR M913 EVP detector cable and TOMAR Optical Signal Processor (OSP). This means no additional cable pulls through congested conduits, use of load switches or added power supplies are needed to provide confirmation lights & visual feedback. TOMAR’s STROBECOM II™ IC traffic signal priority system is the only preemption option providing real, closed-loop, visual feedback to first responders.

• Provides real-time visual feedback to emergency and transit vehicle operators without the need to take their eyes off the roadway by flashing or steady-burn LEDs - This could help reduce collisions between emergency vehicles when two are approaching the same intersection at the same time
• Provides visual notification to public motorists regarding a preemption event happening

Product Options

• DETOC22-IC-X: 2-Head, 2-Direction, 2-Channel, 2-LED with Integrated Confirmation™

Key Features

• Military-derived sensor technology for direct sunlight rejection and detection performance unmatched by any other system.
• Fully encapsulated electronics for complete resistance to water, heat, and vibration.
• Complete electronics protection from damage due to mis-wiring or electrical transients.
• Simple advanced detector installation without any special cabling for enhanced detection around corners and over hills.
• Tool-less tilt/swivel for each detector head makes aiming easy.

TRUE 10 YEAR WARRANTY!

10 year warranty covers the DETOC Series and all STROBECOM II components. Unlike other manufacturers, TOMAR’s ten year warranty has no fees or charges for warranty repairs after five years.

*Global Traffic Technologies, GTT, and Opticom are trademarks of Miovision Technologies Incorporated and not affiliated with TOMAR Electronics Inc.

STROBECOM II Overview

Product Cut Sheets and Wiring Guides

• DETOC21 - 2-Head/1-Channel, Optical Detector

• DETOC22 - 2-Head, 2- Direction, 2-Channel, Standard Detector
  with TOMAR OSPOC Automatic Test

• DETOC1-IC- X - 1-Head, 1- Direction, 1-Channel, 1-LED, Standard
  Detector with Integrated Confirmation and TOMAR
  OSPOC Automatic Test
• DETOC21-1IC-X - 2-Head, 1- Direction, 1-Channel, 1-LED, Standard
  Detector with Integrated Confirmation and TOMAR
  OSPOC Automatic Test

• DETOC21-IC-X - 2-Head, 2- Direction, 1-Channel, 2-LED, Standard
  Detector with Integrated Confirmation and TOMAR
  OSPOC Automatic Test
• DETOC22-IC-X - 2-Head, 2- Direction, 2-Channel, 2-LED, Standard
  Detector with Integrated Confirmation and TOMAR
  OSPOC Automatic Test
• DETOC Detector Installation and Wiring

3D STEP FILES

• DETOC1-21-XX1CL-X Series 2 Head Detector 3D Step File (Same Direction, No Confirmation, Standard and Self Test)
• DETOC1-2X-XX Series 2 Head Detector 3D Step File (1 Confirmation Light Standard and Self Test)
• DETOC1-2X-XX Series 2 Head Detector 3D Step File (Different Direction No Confirmation, Standard and Self Test)
• DETOC1-2X-XX Series 2 Head Detector 3D Step File (Different Direction 2 Confirmation Lights, Standard and Self Test)
