PRODUCT OVERVIEW

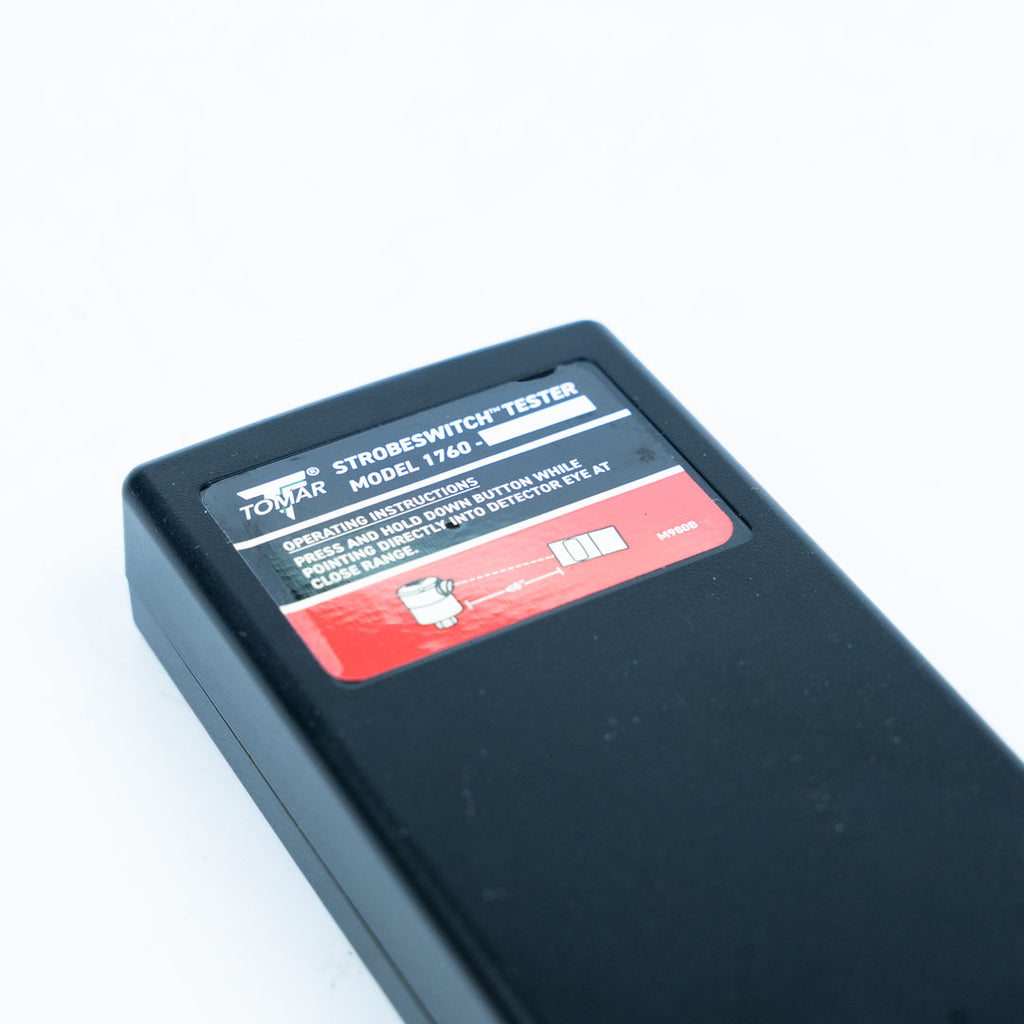

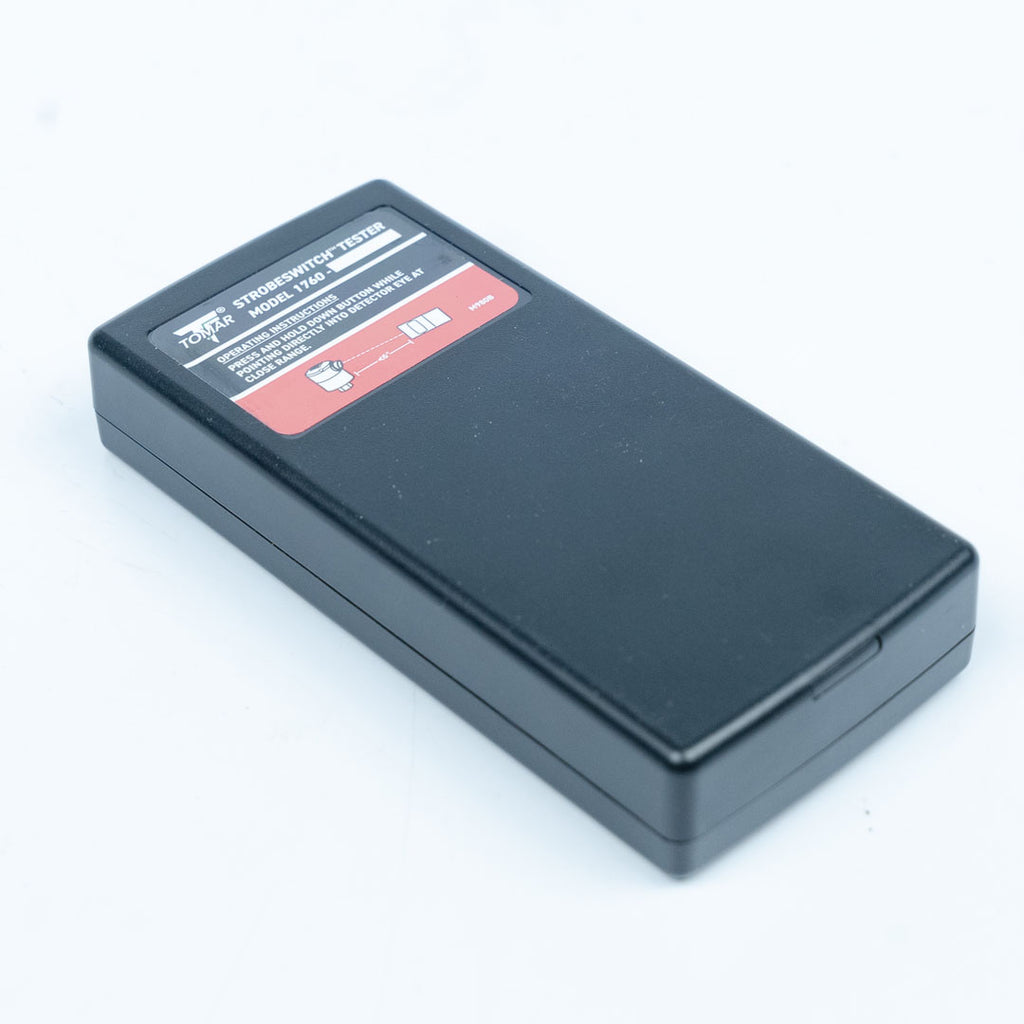

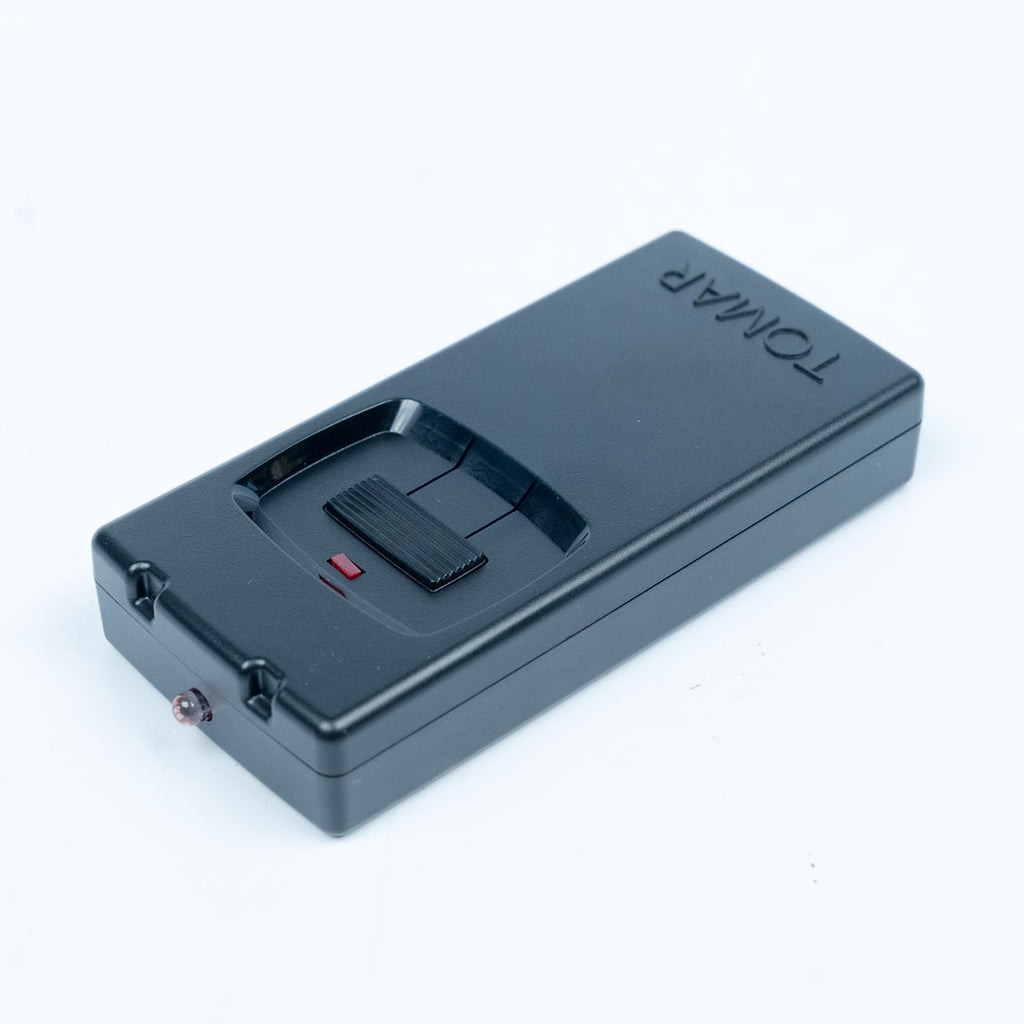

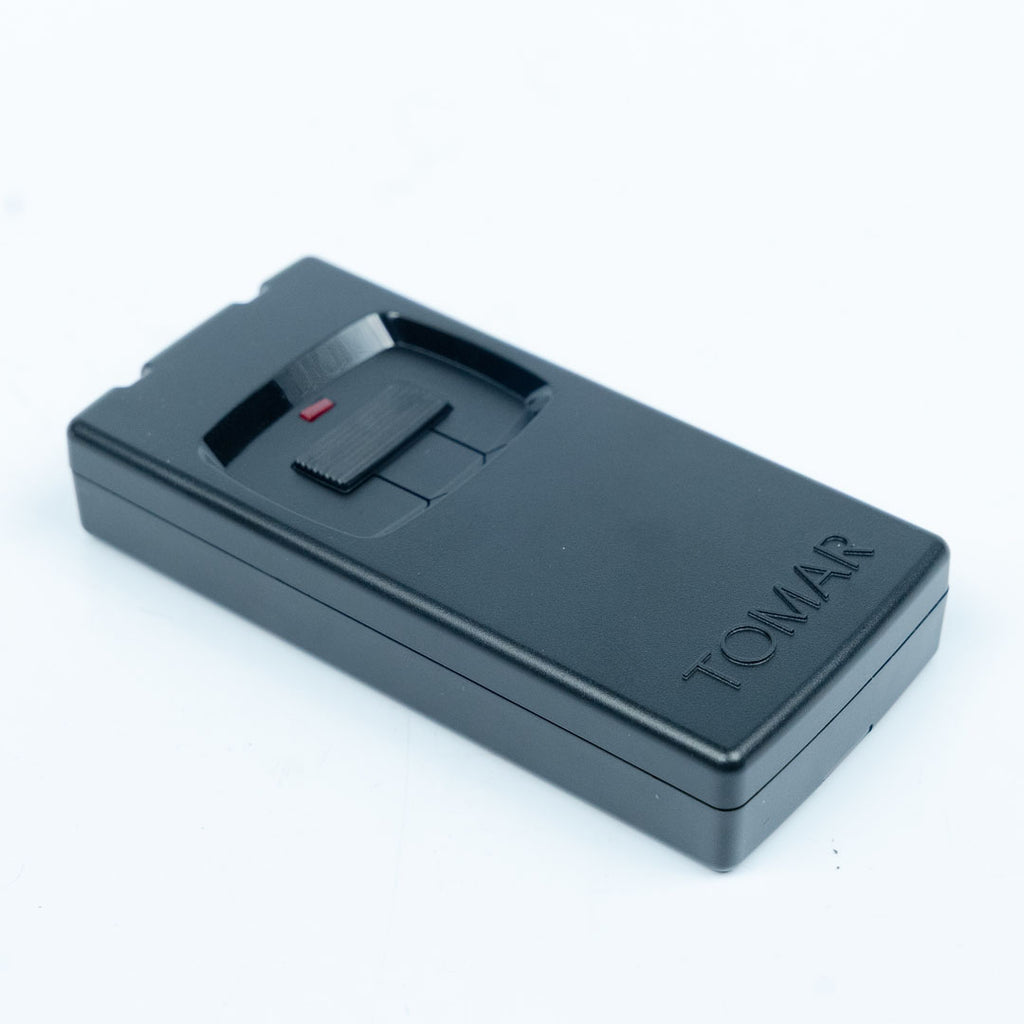

The 1760 Tester is designed to activate a STROBECOM II® or STROBESWITCH™ detector by aiming it directly into the detector’s sight tube from close range (under 6 inches) and pressing the “ON” button. When functioning correctly, the detector’s confirmation LED will illuminate, and it will preempt the traffic controller or activate the gate’s opener relay.
1760 Specs
- Output LED: Invisible IA type narrow beam width
- Frequency Control: Crystal controlled solid-state digital oscillator
- Recommended Use: Position LED directly into sight tube/detector eye
- Battery: 9V alkaline transistor type
1760 Options
- 1760-10: Transit Band (low) Frequency
- 1760-14: Emergency Band (high) Frequency
Helpful Links
FAQ's
Does this system detect IR or Infrared Emitters?
Yes, our Strobeswitch detectors will detect all brands of IR, Infrared, LED & Strobe optical emitters.
Can the time a gate is open be adjusted?
Yes, there is a dial on the power module so that you can adjust the time a gate remains open from 0-30 minutes.
Does this product have a warranty?
Yes, all Strobeswitch products are backed by a 2-year warranty
Does the system provide notification when an optical emitter is detected?
Yes, there is a small red confirmation light inside of the 1790-1014 detector eye.
Do you offer a system that will work at gates using solar?
Yes, our SSLC detectors require a very low draw which makes them ideal for solar applications.
Does the 2795-2 dual detector system include the power module?
Yes, the 1790M-2 power module is included inside of the provided enclosure.
Do you offer a device that can test the system after installation or for periodic testing?
Yes, the 1760-14 handheld tester.
